SPECIFICATIONS

Brand Name: NoEnName_Null

Dimensions: 386*285*220mm

Hign-concerned Chemical: None

Input Voltage: 110v/220v

Model Number: RBC6000DL Pliot arc plasma cutter

Origin: Mainland China

Rated Current: 60A

Use: Cutting

TITLE: Reboot Plasma Cutter Non Touch 50 Amp CUT60DL 1/2" Clean Cut Air Plasma Pilot Arc 110/220V High Frequency Inverter Machine 3/5'' Max Cutting for Copper Alloy Mild Steel Aluminum

Description:

Cutting Thickness: On 220V Carbon steel Max Rated Clean Cut Thickness: 1/2"(12mm). Max Severance Thickness: 3/4"(16mm) Under 110V Clean Cut Thickness : 3/8 ‘’(9mm) output current 30A.

Duty Cycle: Automatic 110/220V AC dual voltage 60% at 50A, 100% at 40A Duty Cycle Pilot Arc Air Plasma Cutter with high frequency inverter( no compressor inside) 30A breaker suggested for220V,50A breaker suggested for 110V

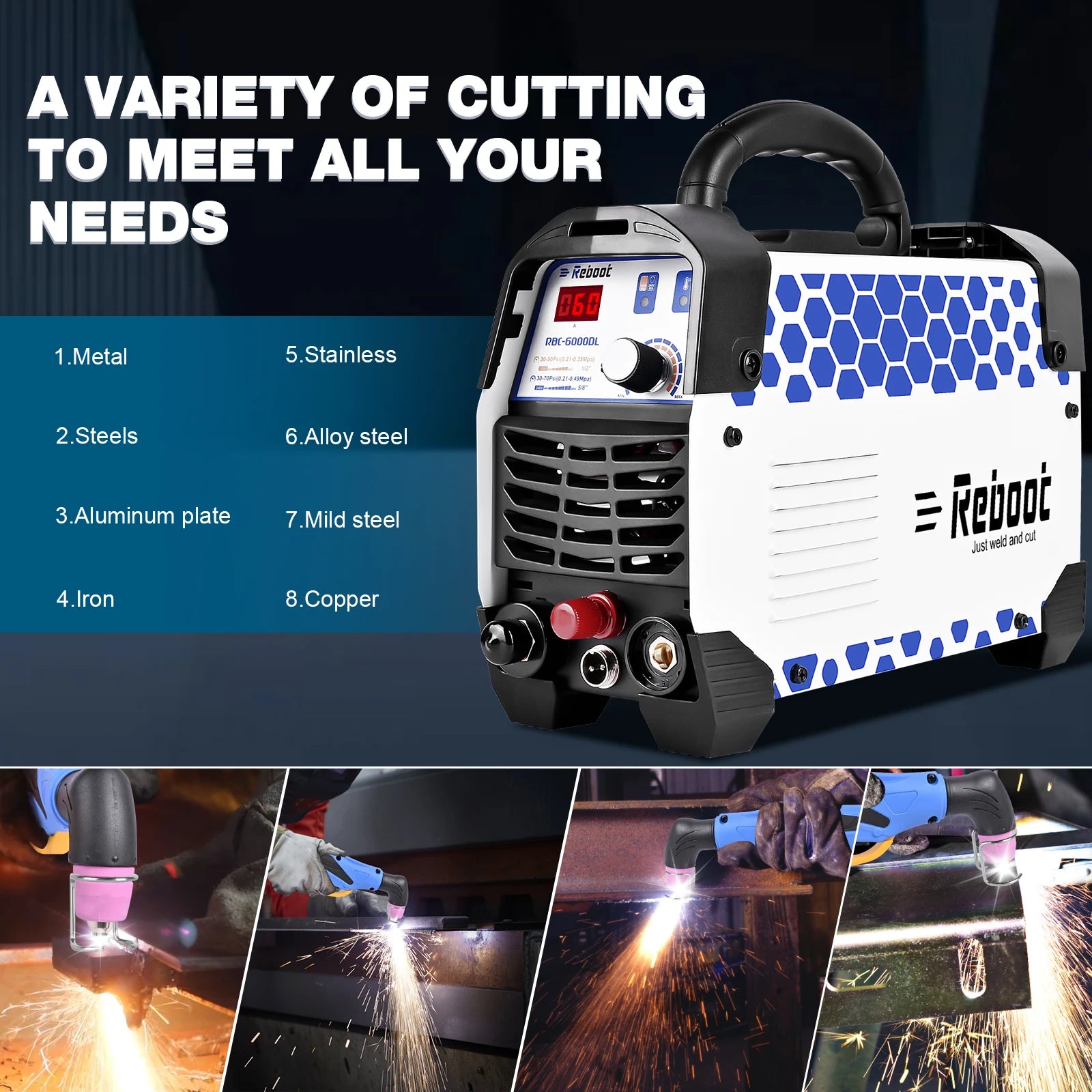

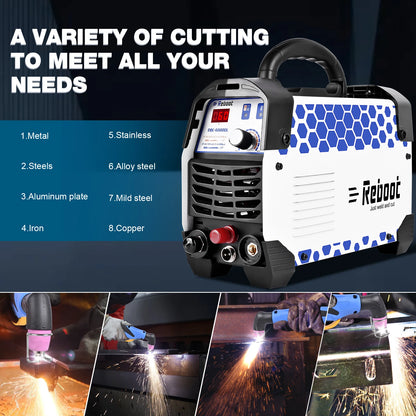

Cutting Material: Stainless steel,Alloy steel,Mild steel,Copper,Cast Iron and Chrome can cut with non touch.We offer 30-Day 100% satisfaction or money back guarantee and 1 Year Limited Warranty

Voltage Transfer: Conversion line easy transfer from 110V to 220V Home Use, Air Pressure 60-70PSI.

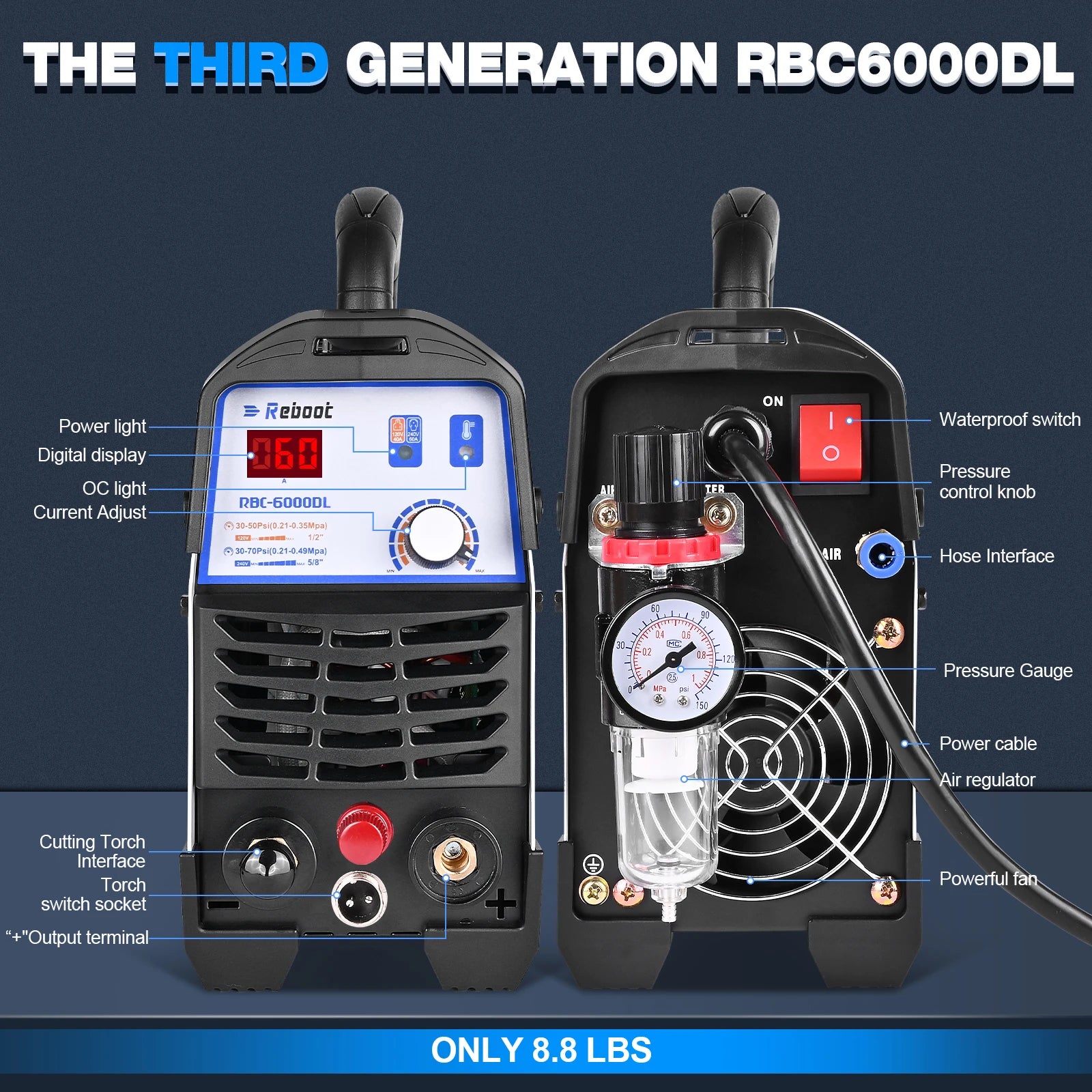

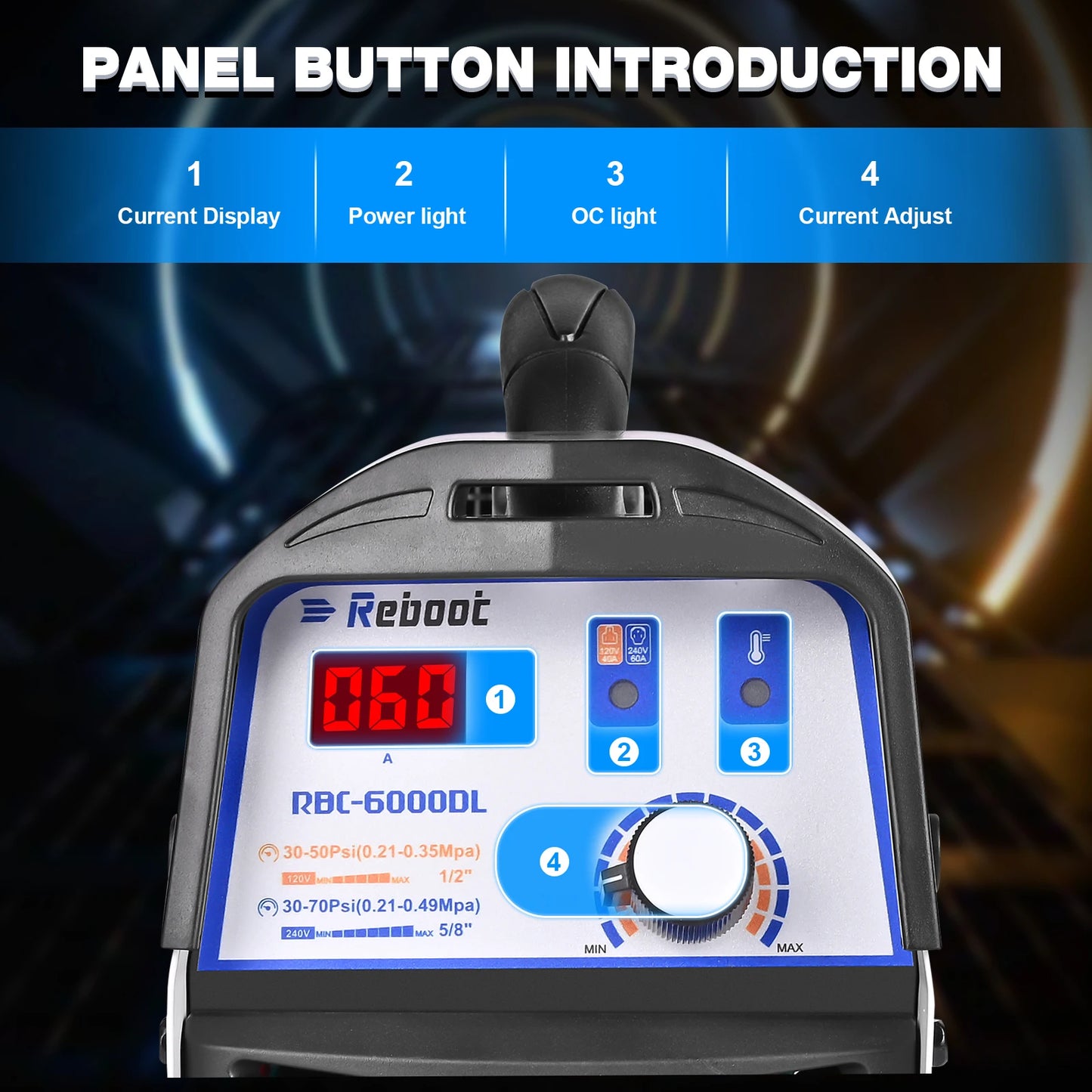

IGBT technology,stable and powerful current output. Digital display control panel.

Smart Design with full digital control ,Constant voltage and synergic adjustment control.

Less cleaning, maintenance, noxious gases, and less fire hazard, High efficiency cutting brings more convenience to your daily life and work.

RBC6000DL Non-touch Pilot Arc Max Cut 4/5“

Parameters:

Current range: 15-50 Amp on 220V,15-35 Amp on 110V

Rated Duty Cycle: 60% at 50A, 100% at 40A

Powerful cutting ability

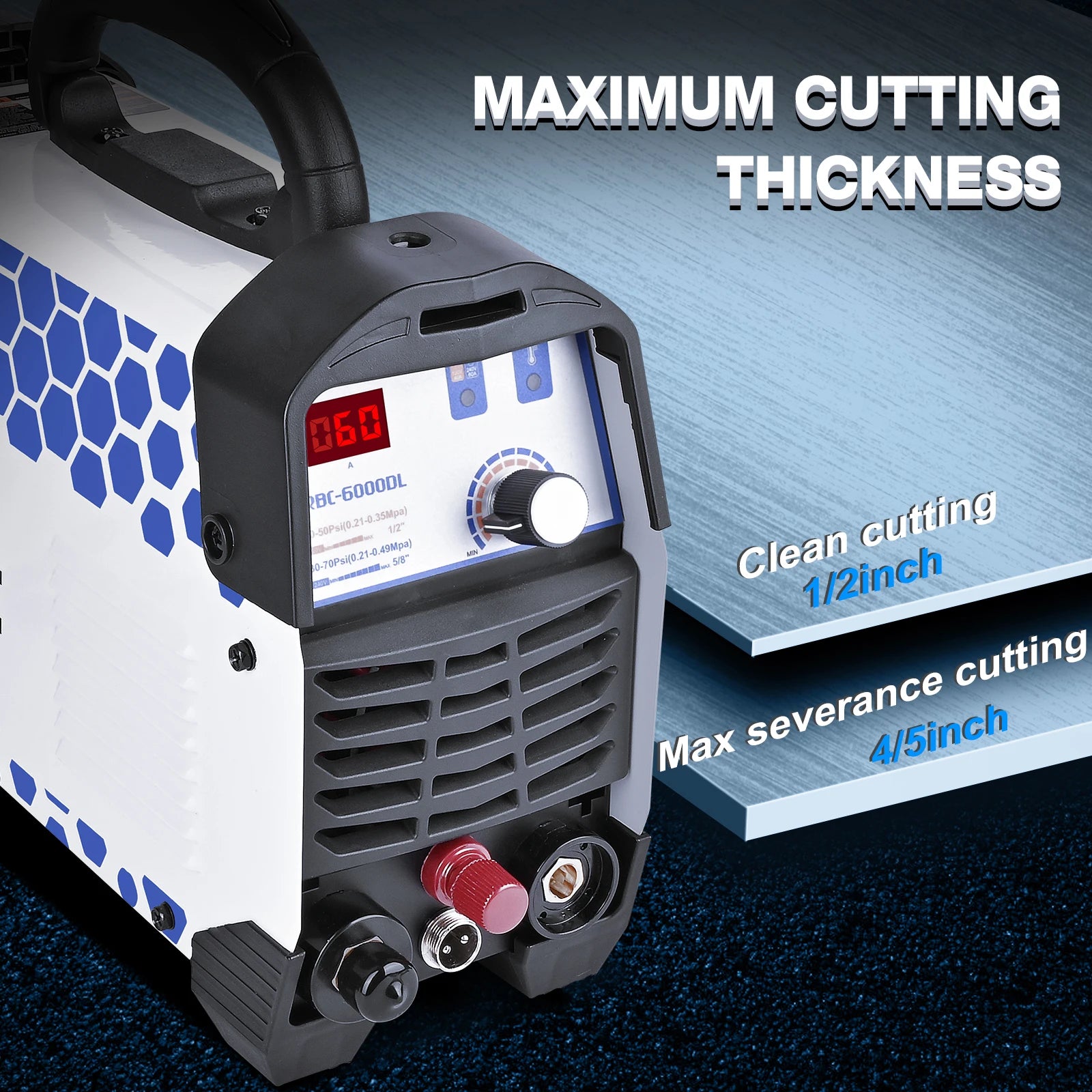

At 220V Maximum Cut: 4/5"(20mm)

At 220V Clean Cut: 3/5" (15mm)

At 110V Maximum Cut: 1/2" (12mm)

At 110V Clean Cut: 3/10" (8mm)

Net weight: 4kg

Package weight: 6.8KG

Machine size: 315*115*220mm

Package size: 386*220*285mm

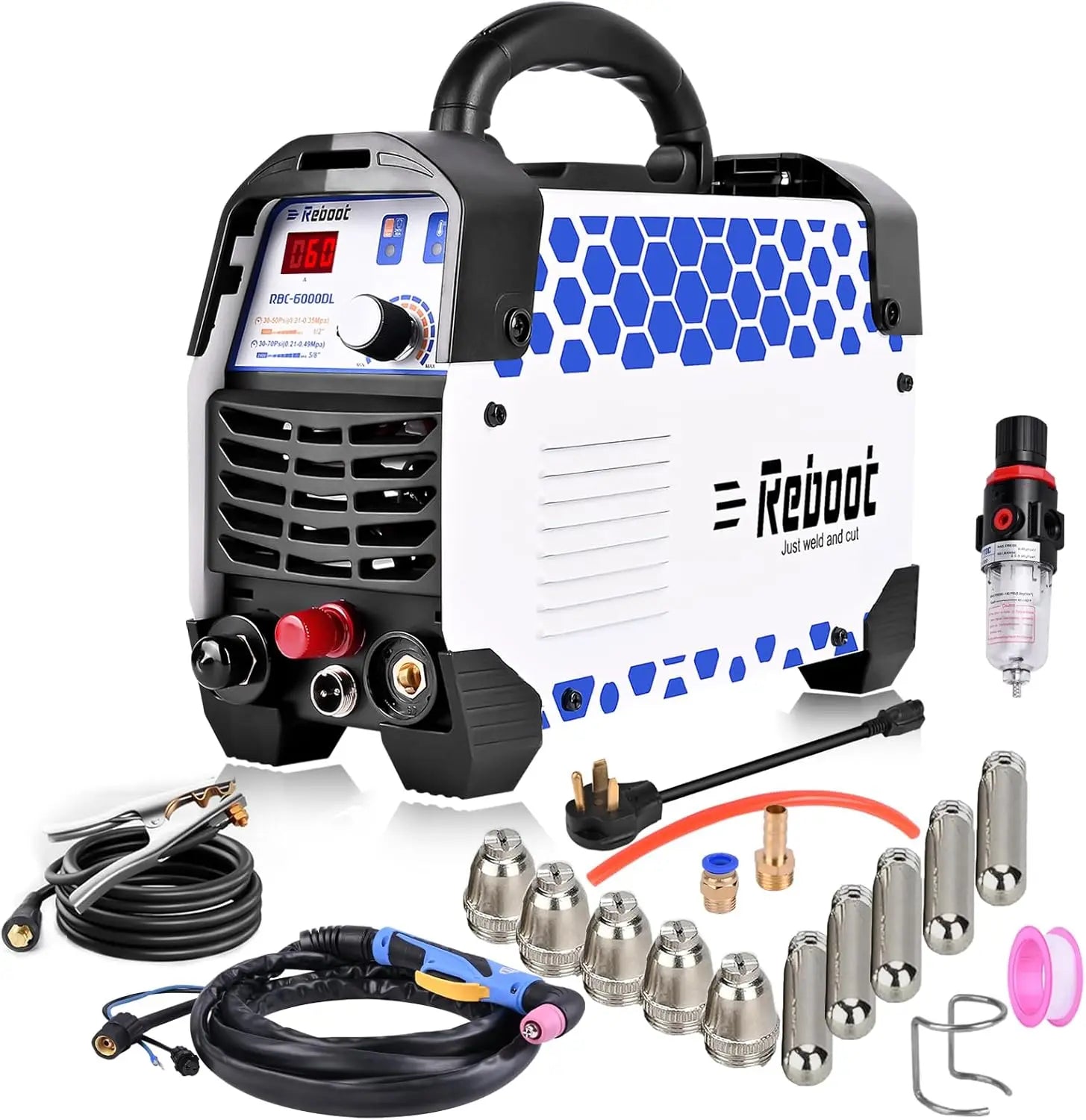

Package included:

Power cable: 1.5M 12 AWG American plug (N515P transfer 220V N6-50P)

AG60 cutting torch: 4M cable with torch head.

Gas hose :0.5M cable

Earth clamp: 3M cable with 200A clamp.

Regulator valve : connector with 1PC8-01 and 2PC8-02.

Consumables: 2pcs electrode, 2pcs nozzles 1pcs ring

Manual : Spanish and English version.

Hot questions from customers:

1,need a 50-liter 3.5-horsepower compressor?

 RBC6000DL cutter machine can work with the size of air compressor power over 750W, displacement over 60L/min , pressure vessel over 30L and max pressure value over 0.7MPa. This Value can basically meet the cutting requirements, if cutting machine is not used so often then parameters requirement can be appropriately reduced also okey.

2,what about the bill?

we are foreign seller so can't offer the local bill invoice , can you accept a proforma invoice with company stamp on it ? advise please

3,What type of consumables do you use

Here is non-touch plasma cutter so please use AG60 torch consumables , our shop will offer this consumables soon to service our customers.

4,It is used to make cuts on a very continuous basis

That should be basis on your cutting thickness , if you cutting less 5mm that should can continuous cutting , if your cutting over 15mm then it just can continuous 3-5 mins .

5,Does this torch model make the arc before it has touched the base material to make the cut faster?

Yes , the torch AG60 make arc before cutting but no-touch cutting machine that make cut faster also protect the torch and consumables.

6,what caliber of stainless steel does it cut

If you wok with 110v with max current 35A you can cut stainless 3-5mm , if under 220v with max current 60A you can cut stainless 6-8mmhope it can help it.
