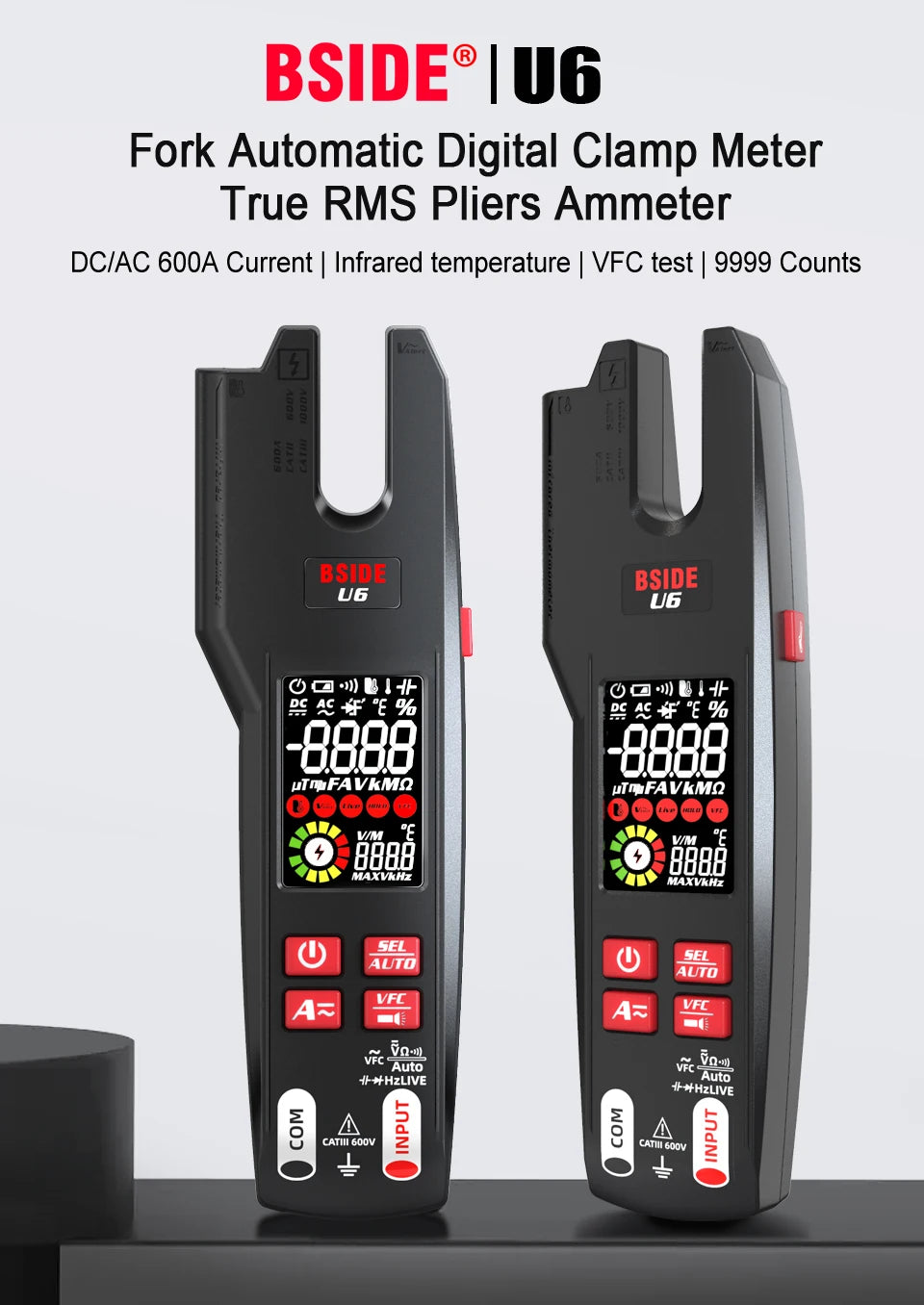

BSIDE Professional Digital Clamp Meter U6 Fork 600A Ammeter Pliers T-RMS DC AC Current OpenJaw Electrical Tester Auto Multimeter
BSIDE Professional Digital Clamp Meter U6 Fork 600A Ammeter Pliers T-RMS DC AC Current OpenJaw Electrical Tester Auto Multimeter
Couldn't load pickup availability
SPECIFICATIONS
A Power: Built-in Rechargeable Battery
B Power: 2*1.5V AA battery (Not included)
BSIDE Model: U6
Battery Included: Yes
Brand Name: BSIDE
Capacitance: Yes.
Certification: CE,FCC,RoHS
DC/AC current: 600A
DC/AC voltage: 620V
DIY Supplies: Electrical
Dimensions: 21*6.4*3.3cm
Display Type: Analog and Digital
Frequency: Yes.
Hign-concerned Chemical: None
Infrared Temperature: -20°C and 400°C
Live wire check: Yes.
Max Display: 9999counts
Measuring Capacitance Range: 10000uF
Measuring Current Range: 600A
Measuring Inductance Range: N/A
Measuring Resistance Range: 10000KΩ
Measuring Voltage Range: 620V
Model Number: U6 Digital Clamp Meter
Object distance ratio: 4:1
Origin: Mainland China
Resistance: Yes.
Size: 210*63.7*33mm
Temperature: Yes.
True RMS: Yes.
V-Alert (non contact voltage detection): Yes.
VFC variable frequency voltage: Yes.
Weight: 500g,216g

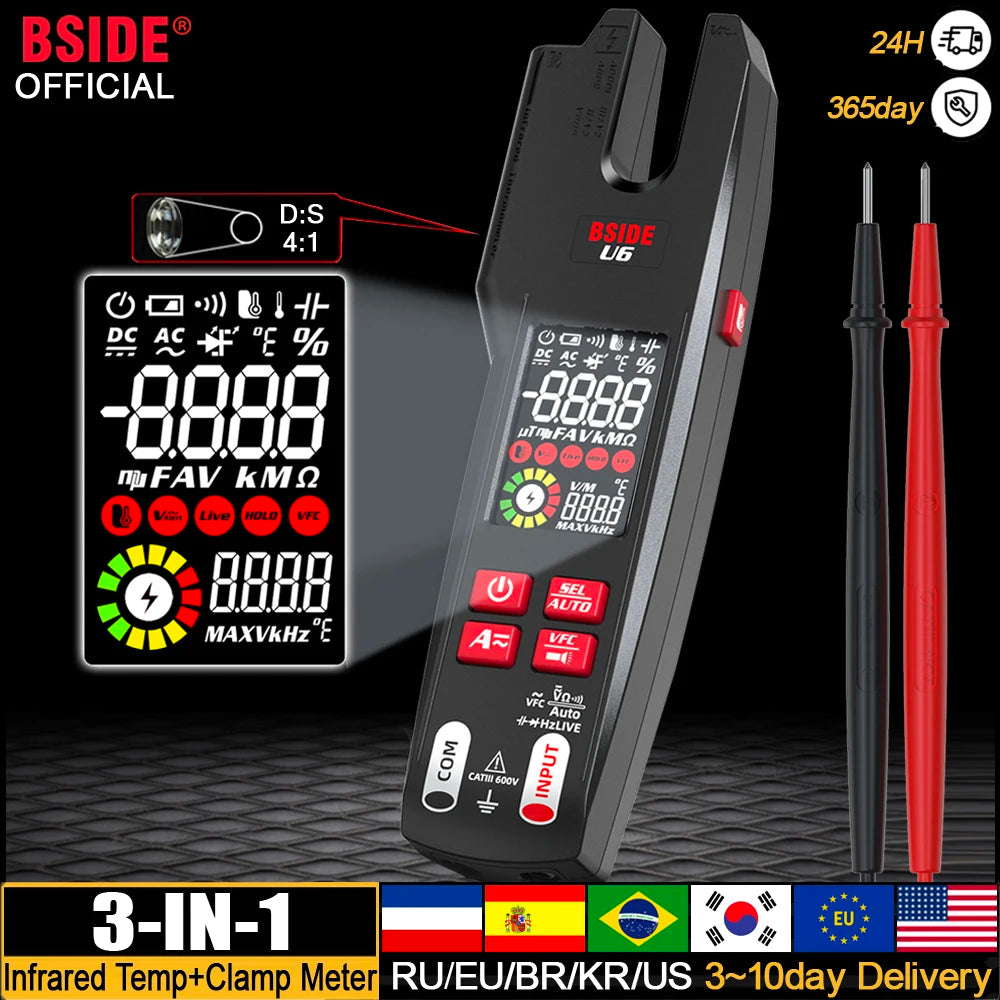

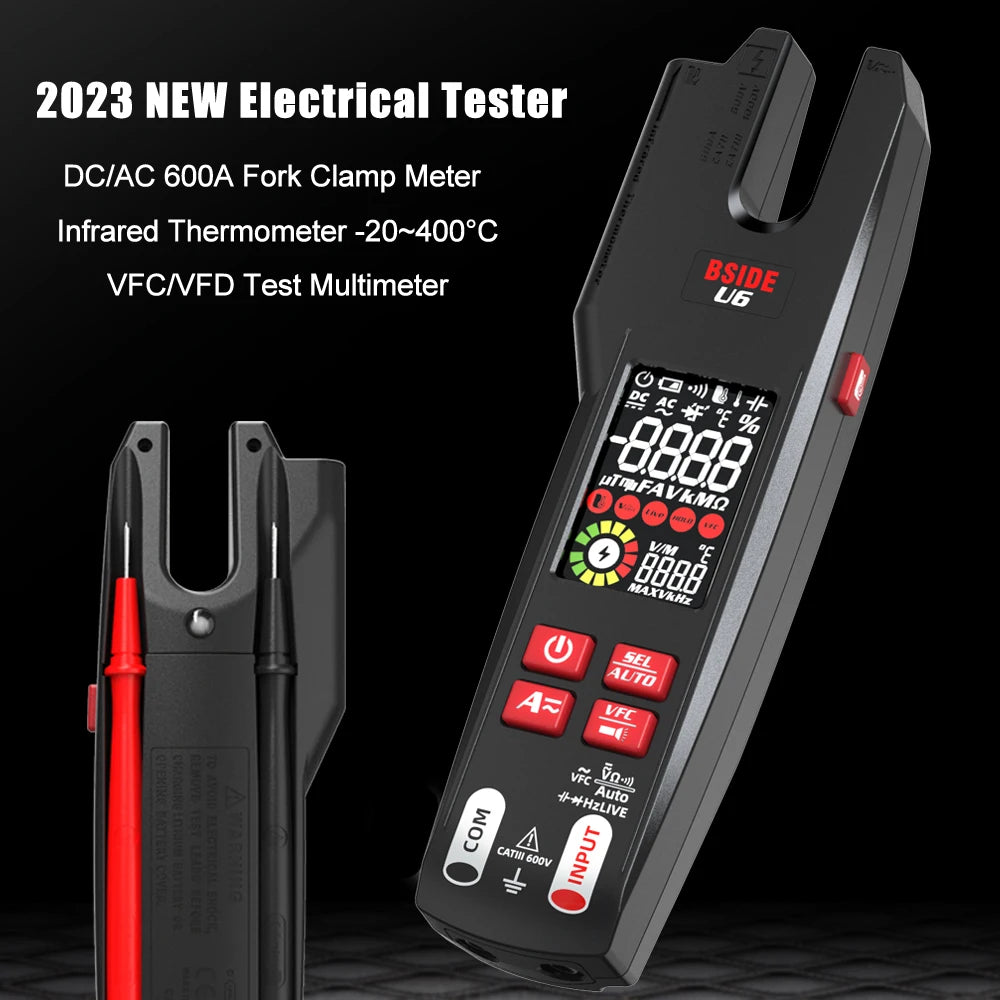

BSIDE U6 Fork Digital Clamp meter Professional OpenJaw DC/AC 600A Ammeter Pliers Automatic Multimeter VFC/VFD Voltage Current Electrical Tester With Infrared thermometer.
New generation of Smart True RMS DC/AC 600A Fork Open-Jaw digital clamp meter.
OpenJaw design is convenient for current testing and maintenance.
Innovative dual power supply mode for longer power supply.
It have intelligent and professional measurement functions, and Infrared temperature est. Full function with gear display, analog bar multiple display
It is the best choice for professional electrician, engineer, electronic enthusiast or family use.
Features:

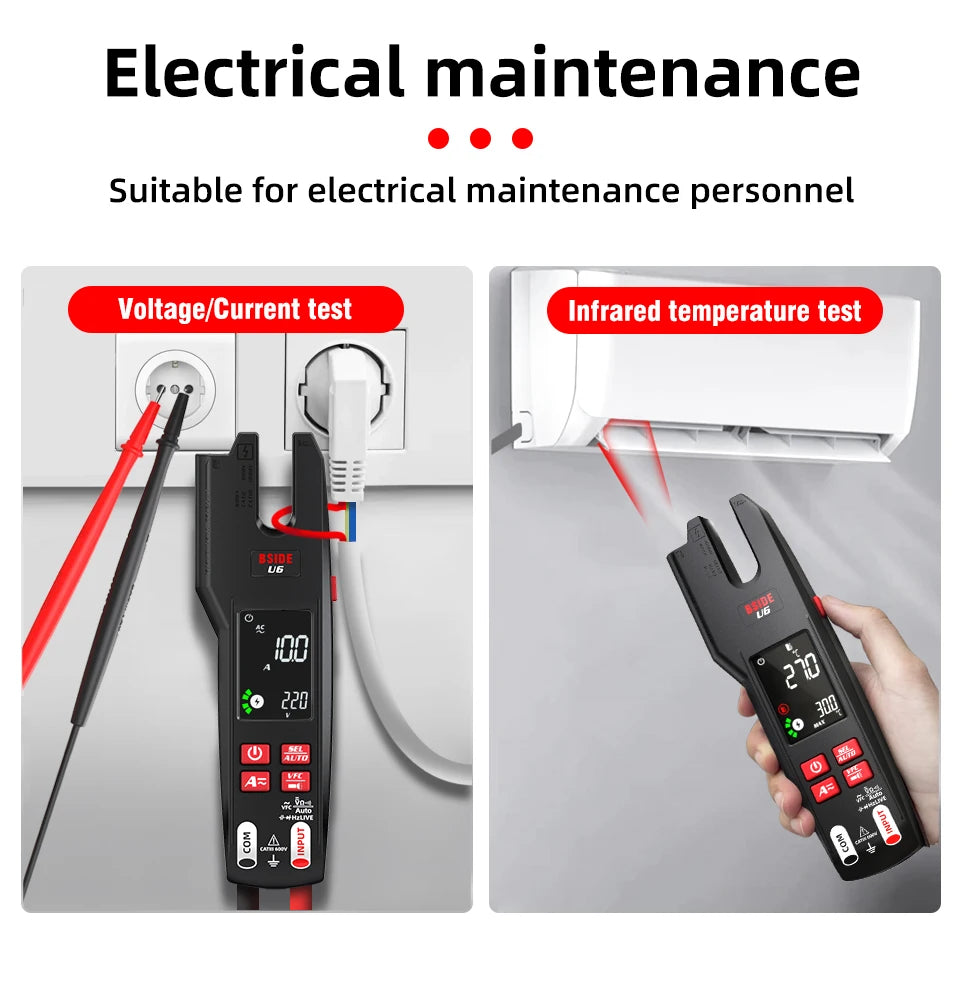

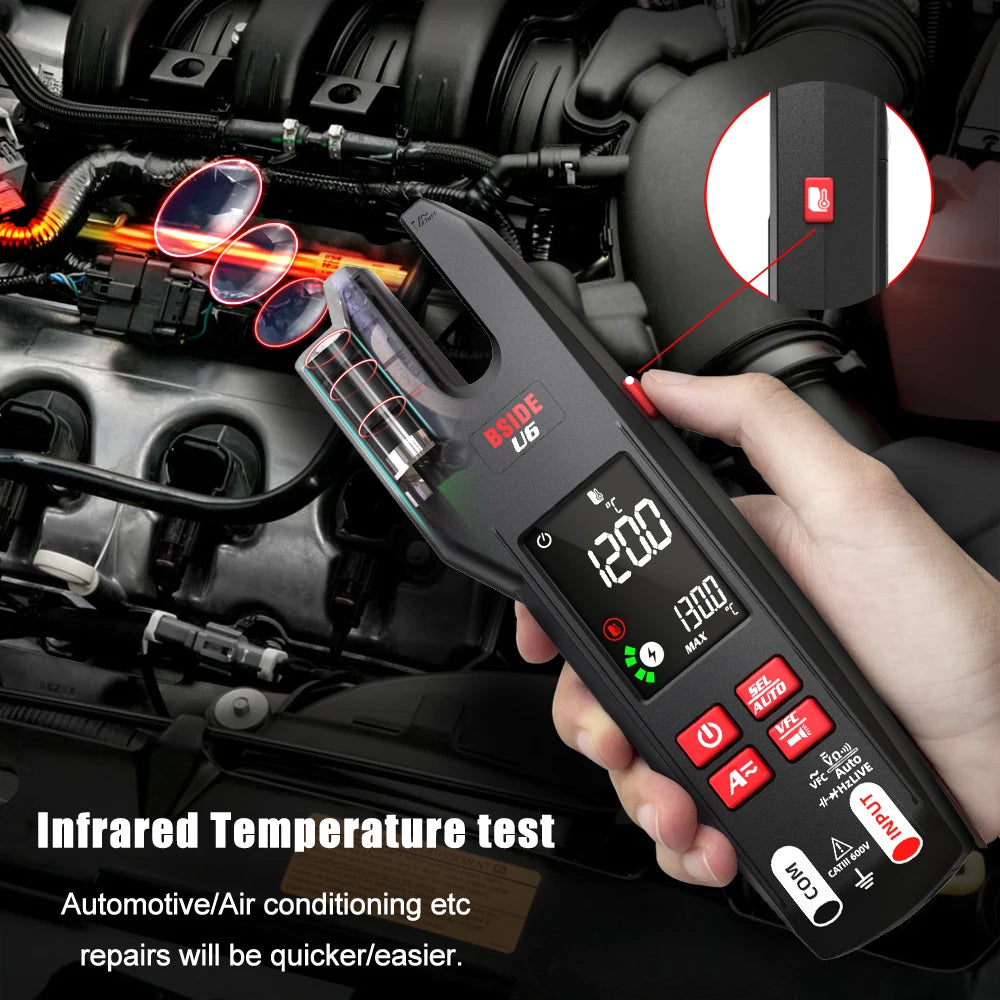

Professional DC/AC 600A Clamp Meter Ammeter Plier with infrared thermometer test.
Maximum display 9999 Counts.

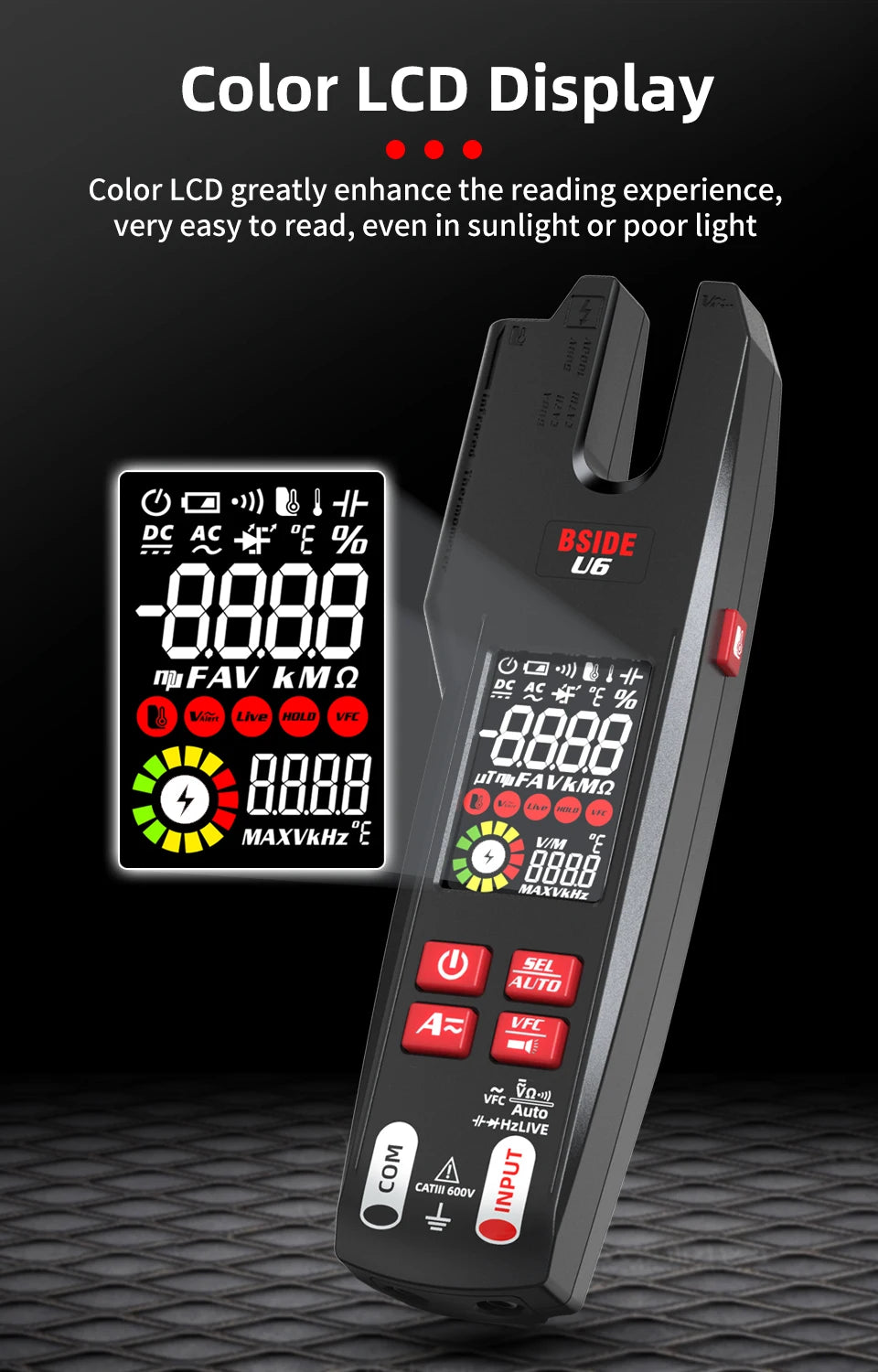

EBTN Color Large HD LCD display.
True RMS, Auto/Manual Range.

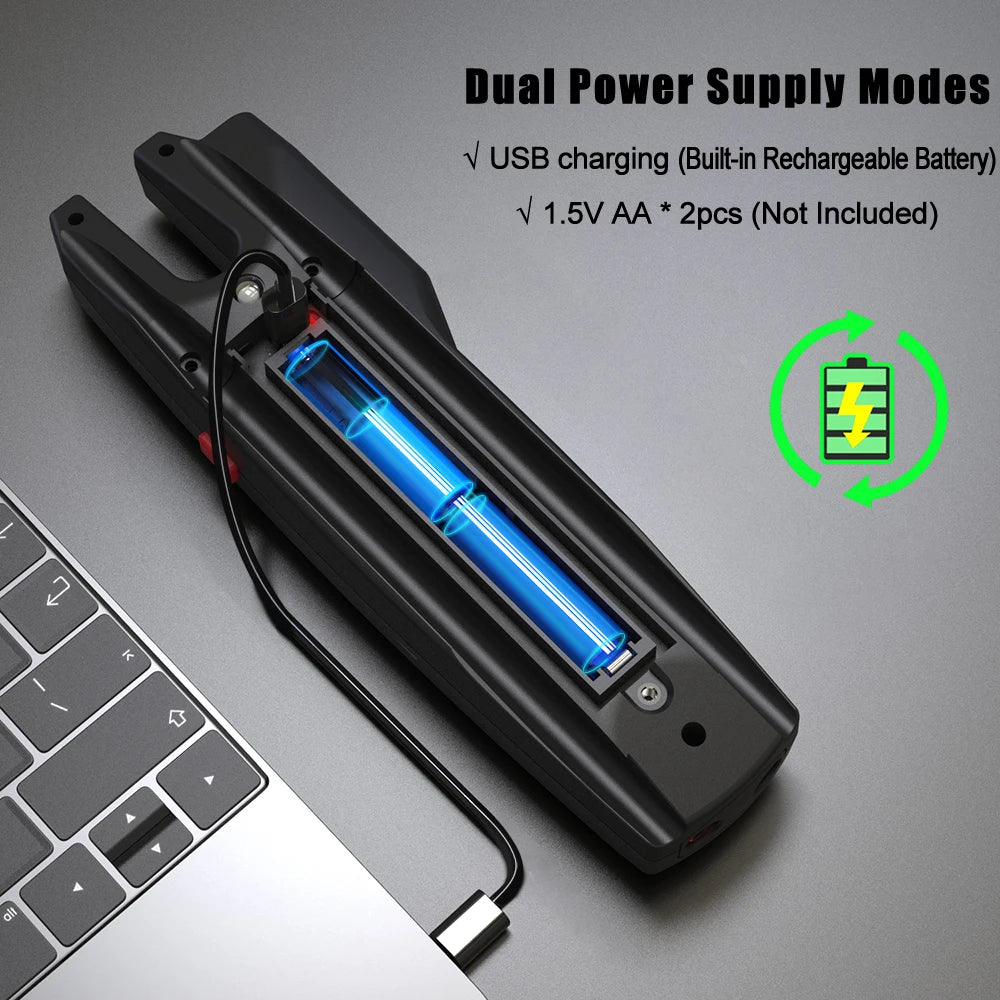

Support dual-mode power supply :
1. Built-in Rechargeable Battery (USB charging)
2. 1.5V AA battery*2 (Not included)
Electrical amp tester with smart mode for easy to use.

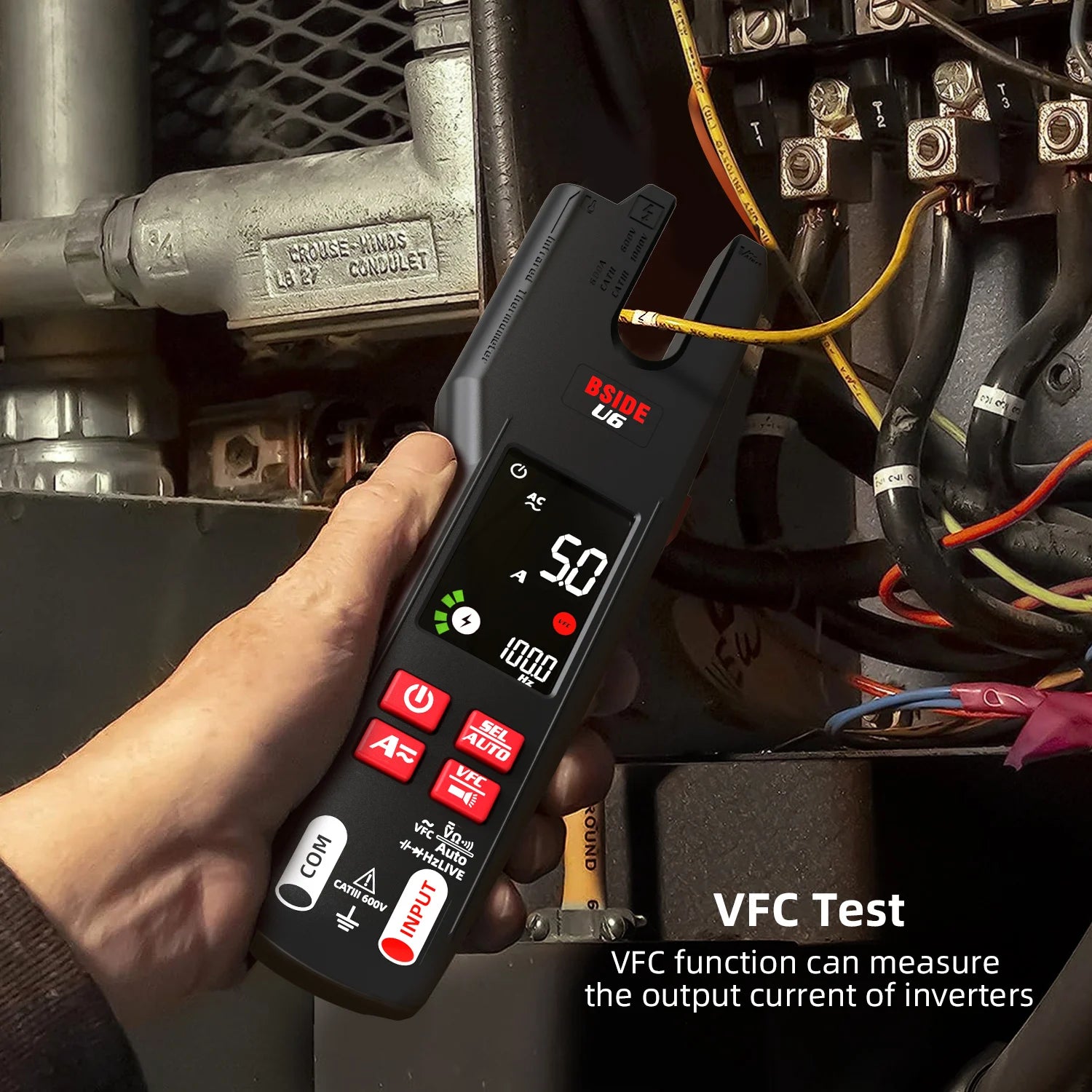

VFC/VFD frequency conversion voltage test.
Oversized body design makes testing safer.

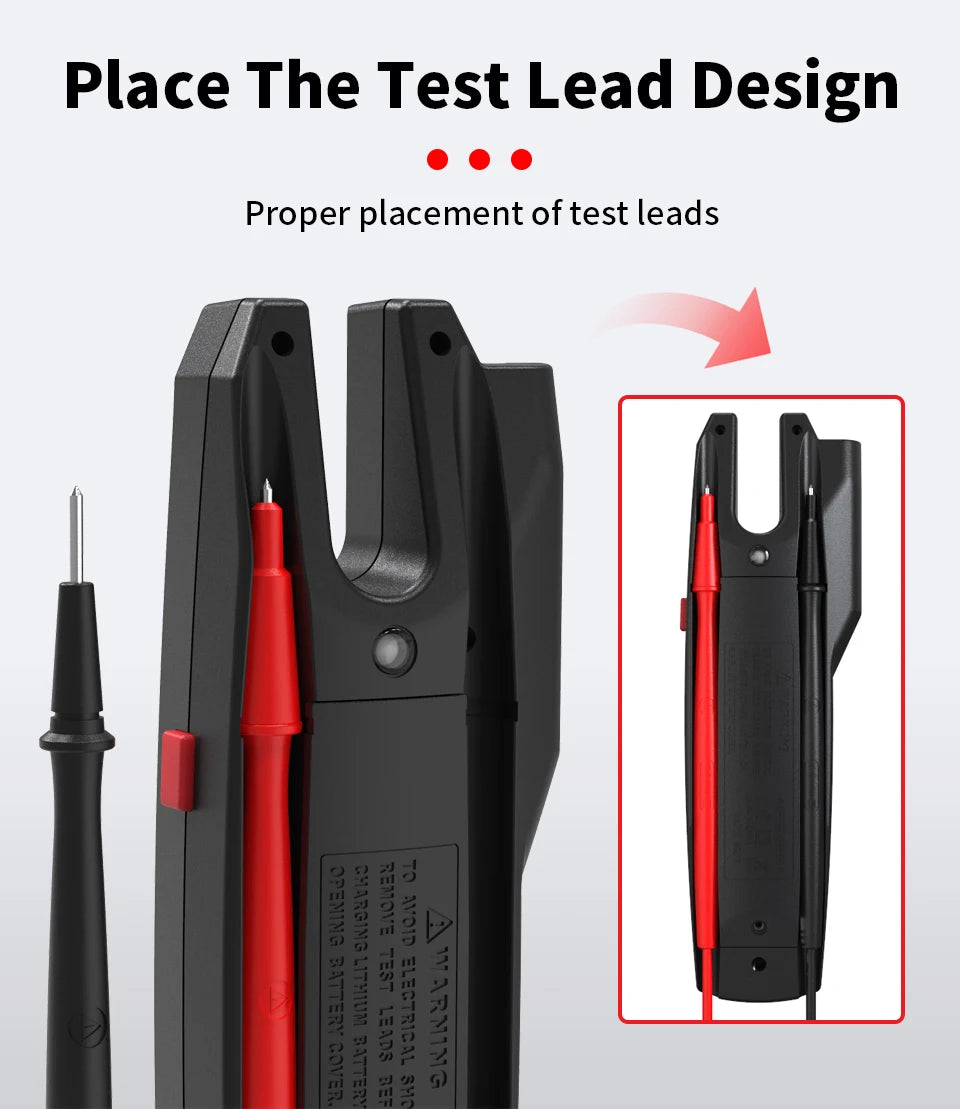

The large pen design card is more convenient with the rear side and side of the fuselage.
Equipped with high-quality portable cloth bag.
Also can be used as a professional voltage detector with adjustable sensitivity.
Auto range, Auto power off, low battery indication with flashlight.
CAT111 600 high safety gauge to meet the global test maintenance.

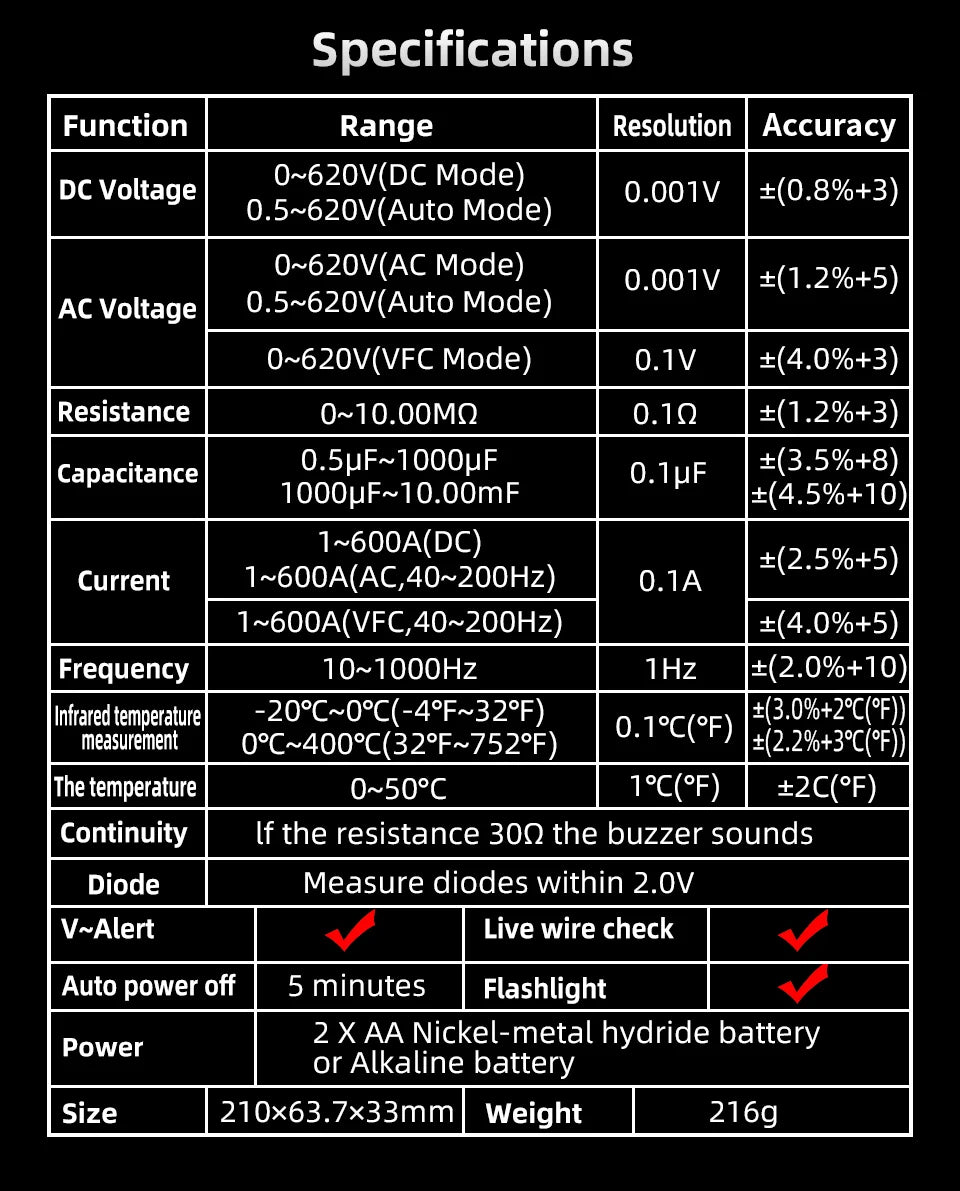

Specifications:
Display: 9999 counts
DC current: 1-600A 0.1A ±(2.5%+5 counts)
AC current: 1-600A (AC mode, 40-200 Hz) 0.1A ±(2.5%+5 counts); 1-600A (VFC mode, 40-200 Hz) 0.1A ±(4.0%+5counts)
DC voltage: 0-620V (DC mode) 0.001 V ±(0.8%+3 counts); 0.5-620V (Auto Mode) 0.001 V ±(0.8%+3 counts)
AC voltage: 0-620V (AC mode) 0.001 V ±(1.2%+5 counts); 0.8-620V (Auto Mode) 0.001 V ±(1.2%+5 counts); 0-620 V (VFC mode) 0.1V ±(4.0%+3 counts)
VFC/VFD voltage: Yes.
Resistance: 0-10MΩ 0.1Ω ±(1.2%+3 counts)

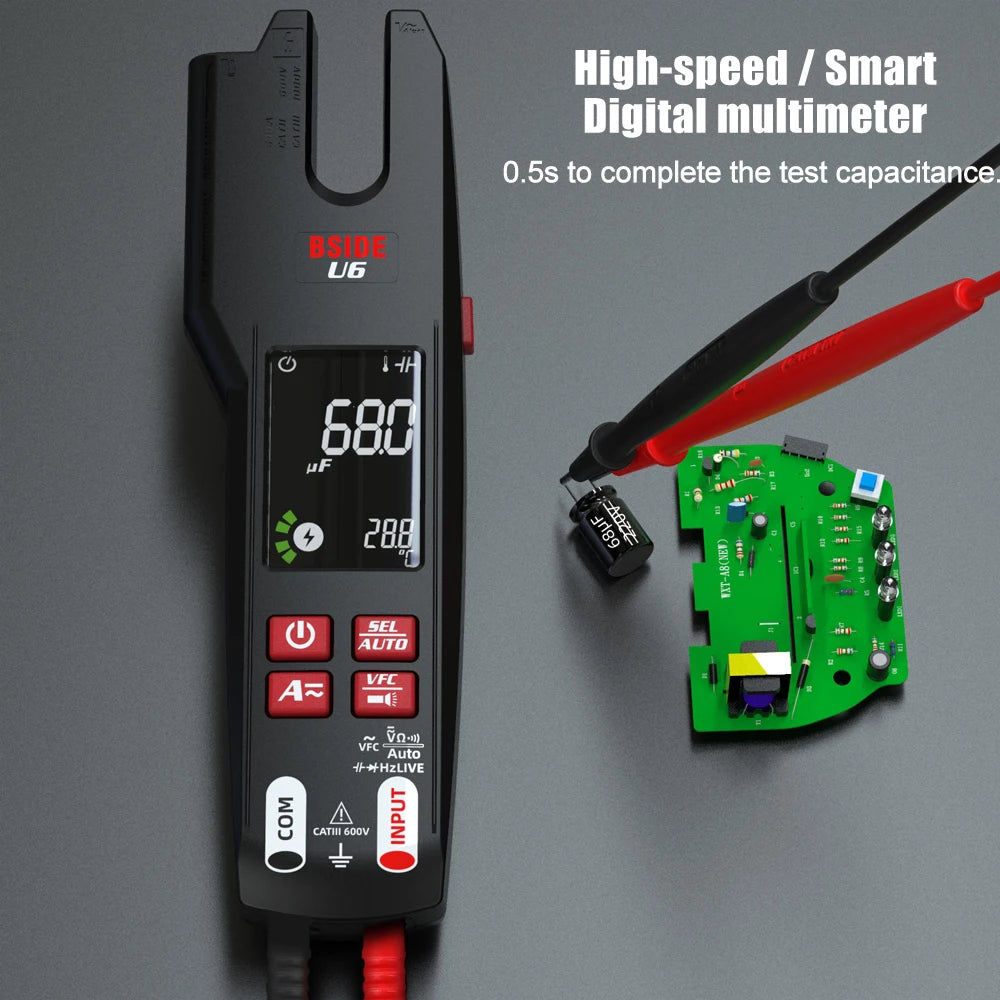

Capacitance: 0.5µF-1000µF 0.1µF ±(3.5%+8 counts); 1000µF-10mF 0.1µF ±(4.5%+10 counts)
Frequency: 10-1000Hz 1Hz ±(2.0%+10 counts)
Infrared temperature: -20℃~0℃/-4℉-32℉ 0.1℃/0.1℉ ±(3.0%+2℃/℉); 0℃~400℃/32℉-752℉ 0.1℃/0.1℉ ±(2.5%+3℃/℉)
Diode: Measure diodes within 2.0V
Continuity: If the resistance is less than 30Ω, the continuity beeper sounds
Temperature: 0-50℃/32℉-122℉ ±2℃/℉
V-Alert (non contact voltage detection): Yes
Live wire check: Yes
Power:
1. USB charging (built-in rechargeable battery)
2. 1.5V AA battery*2 (not included)

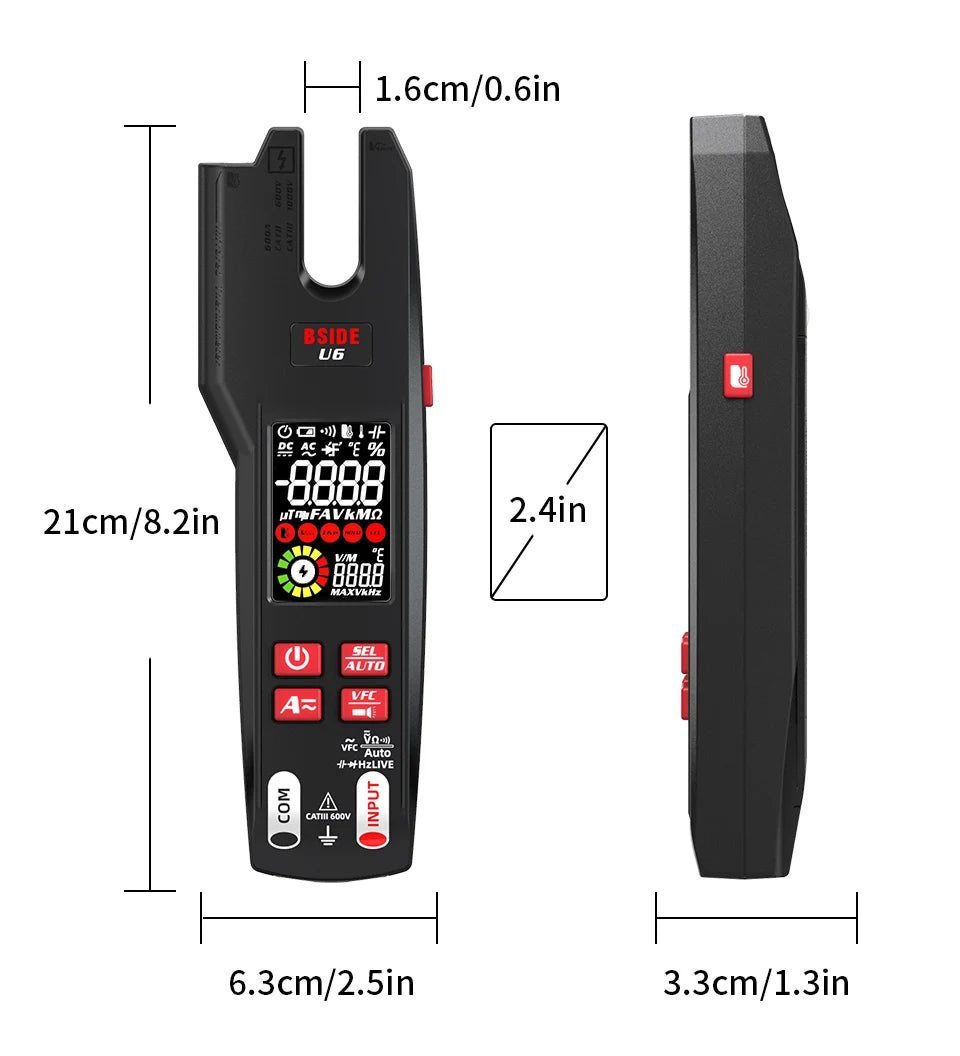

Size: 210 x 63.7 x 33 mm
Weight: 216 g

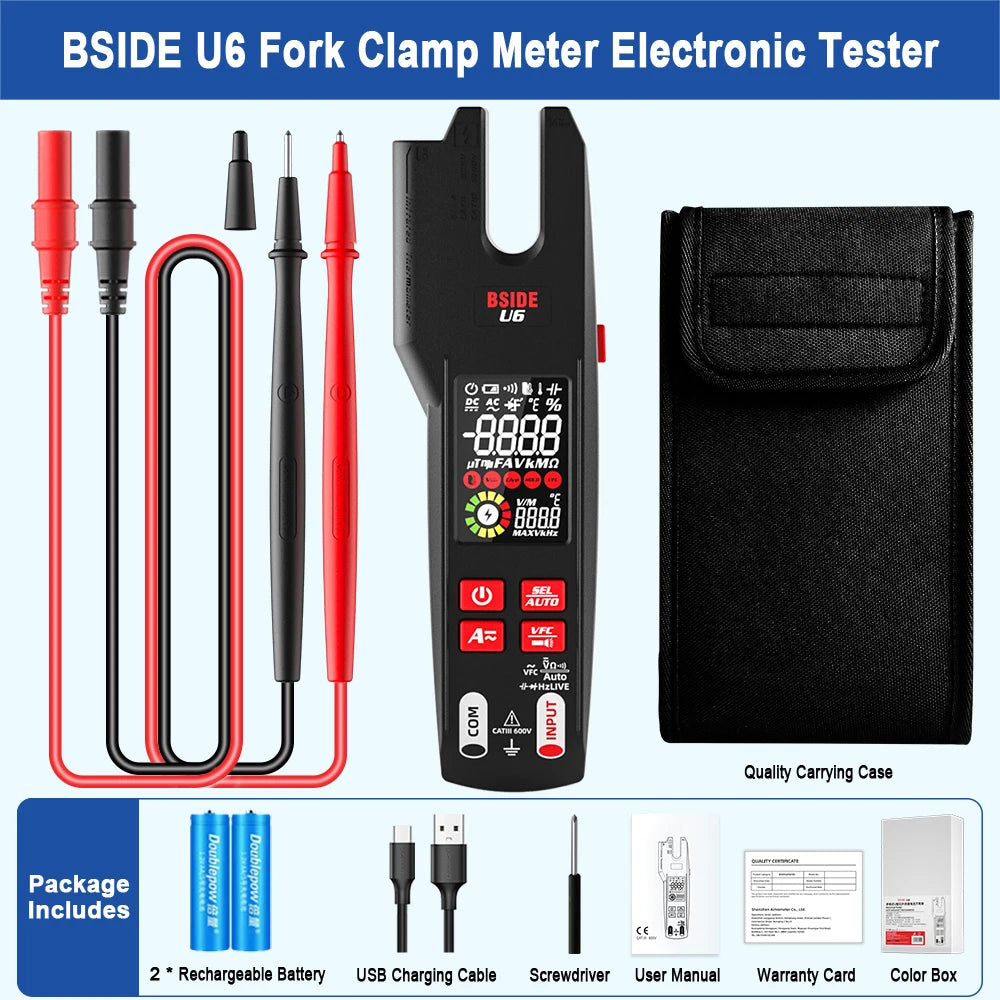

Package Includes:
1 x BSIDE U6 Electronic tester Clamp meter
1 x Upgrade Test Leads；2 x Lithium Battery
1 x USB Charging Cable；1 x Carrying Case
1 x Screwdriver；1 x User Manual；1 x Color Box
